Gearless motorSWS5

Product

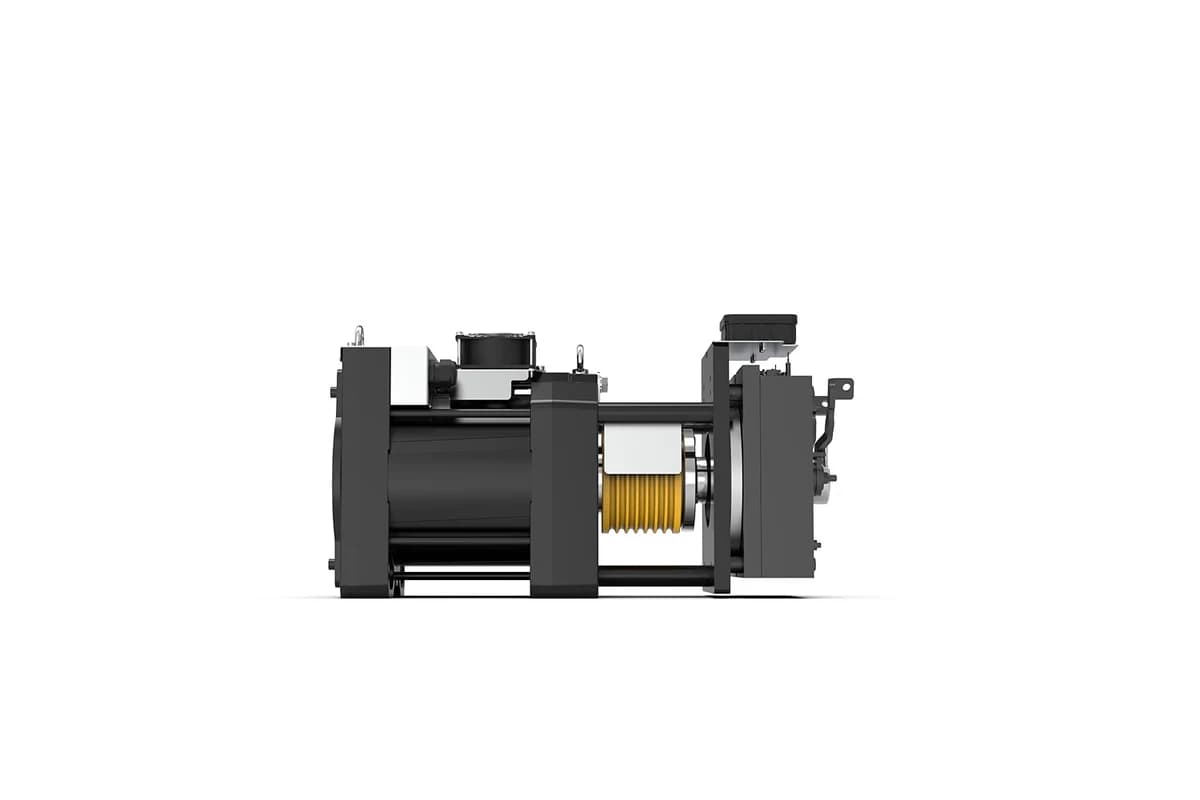

SICOR SWS5

SICOR

Get a quote

Free technical consultation for your project

Payload

800 kg

Speed

0.15–1.60 m/s

Product family

SWS — central sheave ultra-compact MRL

Specifications

18 specifications

SICORSWS5
Product code
1783
Category
Gearless motor
Payload
800 kg
Speed
0.15–1.60 m/s
Product family
SWS — central sheave ultra-compact MRL
Motor type
Gearless PMSM internal rotor
Power
1.0–8.5 kW
Rated torque
160 Nm (S3 40%)
Max static load
29.4 kN – 3000 kg
Machine weight
127 kg
Traction sheave
120–160 mm
Roping
2:1
Suspension
Wire rope
Supply voltage
360 V / 208 V
Brake
2×180 Nm
Duty type
S3 40%
Machine room
Machine-roomless (MRL)
Compliance
Lift Directive 2014/33/EU, EN 81-20, EN 81-50

Product overview

SWS5 central-sheave ultra-compact — 800 kg rated for space-critical MRL.
