Gearless motorSWS3

Product

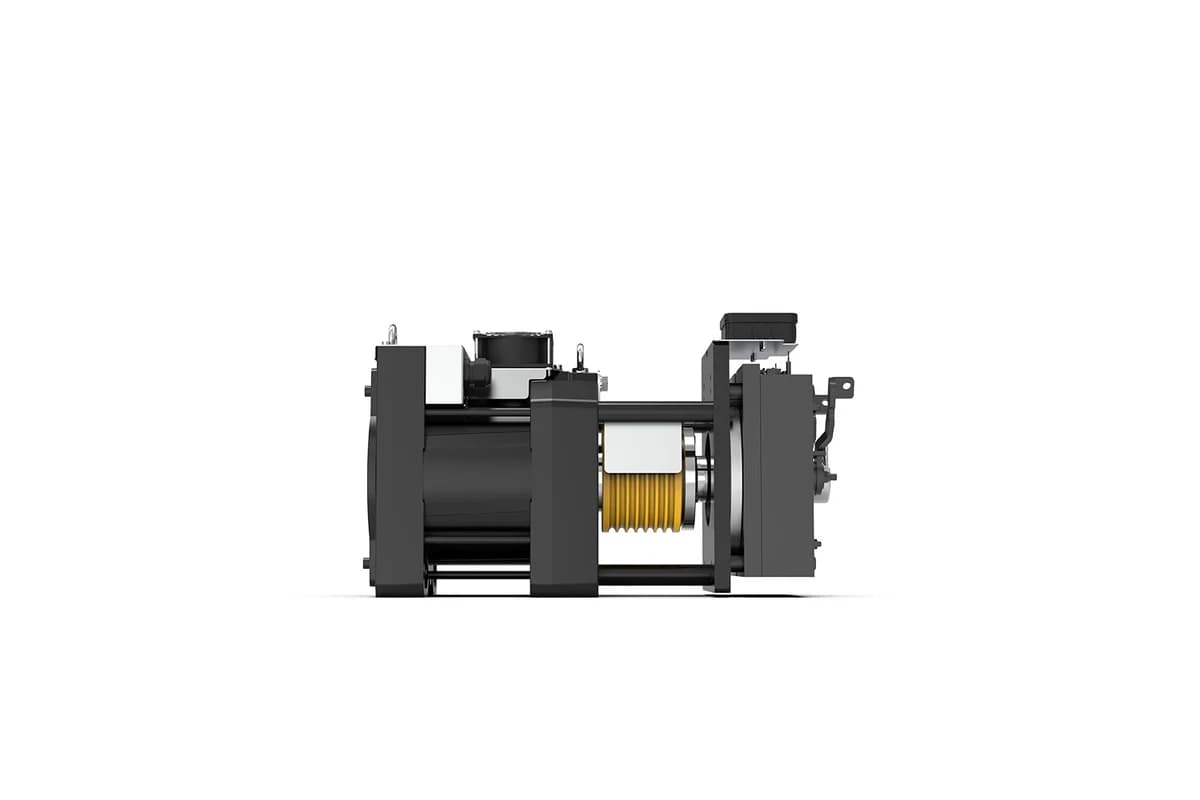

SICOR SWS3

SICOR

Get a quote

Free technical consultation for your project

Payload

675 kg

Speed

0.15–1.60 m/s

Product family

SWS — central sheave ultra-compact MRL

Specifications

18 specifications

SICORSWS3
Product code
1327
Category
Gearless motor
Payload
675 kg
Speed
0.15–1.60 m/s
Product family
SWS — central sheave ultra-compact MRL
Motor type
Gearless PMSM internal rotor
Power
0.8–6.4 kW
Rated torque
120 Nm (S3 40%)
Max static load
23.5 kN – 2400 kg
Machine weight
119 kg
Traction sheave
120–160 mm
Roping
2:1
Suspension
Wire rope
Supply voltage
360 V / 208 V
Brake
2×180 Nm
Duty type
S3 40%
Machine room
Machine-roomless (MRL)
Compliance
Lift Directive 2014/33/EU, EN 81-20, EN 81-50

Product overview

SWS3 central-sheave ultra-compact gearless — 675 kg rated, minimal radial dimension.
