Specifications
18 specifications

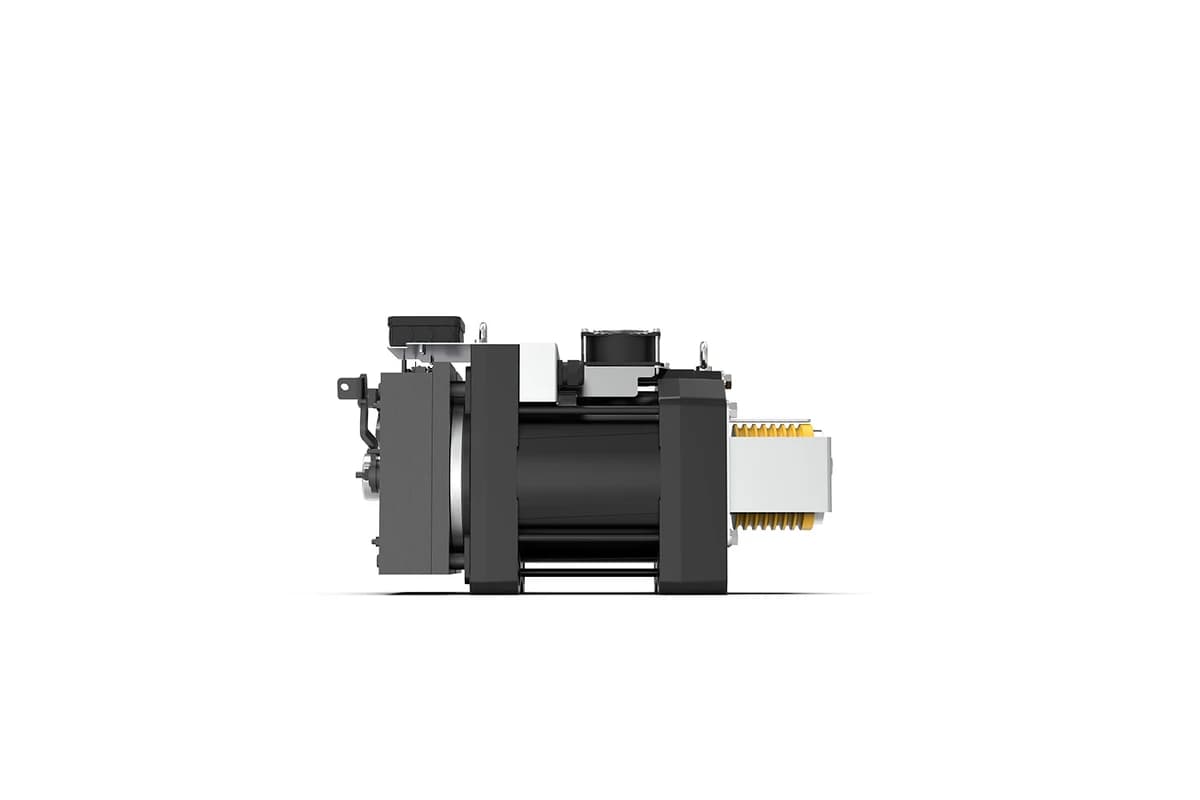

SICORSW05
- Product code
- 1262
- Category
- Gearless motor
- Payload
- 800 kg
- Speed
- 0.15–1.60 m/s
- Product family
- SW — cantilever ultra-compact MRL
- Motor type
- Gearless PMSM internal rotor
- Power
- 1.0–8.5 kW
- Rated torque
- 160 Nm (S3 40%)
- Max static load
- 29.4 kN – 3000 kg
- Machine weight
- 129 kg
- Traction sheave
- 120–210 mm
- Roping
- 2:1
- Suspension
- Wire rope
- Supply voltage
- 360 V / 208 V
- Brake
- 2×180 Nm
- Duty type
- S3 40%
- Machine room
- Machine-roomless (MRL)
- Compliance
- Lift Directive 2014/33/EU, EN 81-20, EN 81-50
Product overview
SW05 cantilever ultra-compact gearless — 800 kg rated for tight MRL shafts.
