Specifications
16 specifications

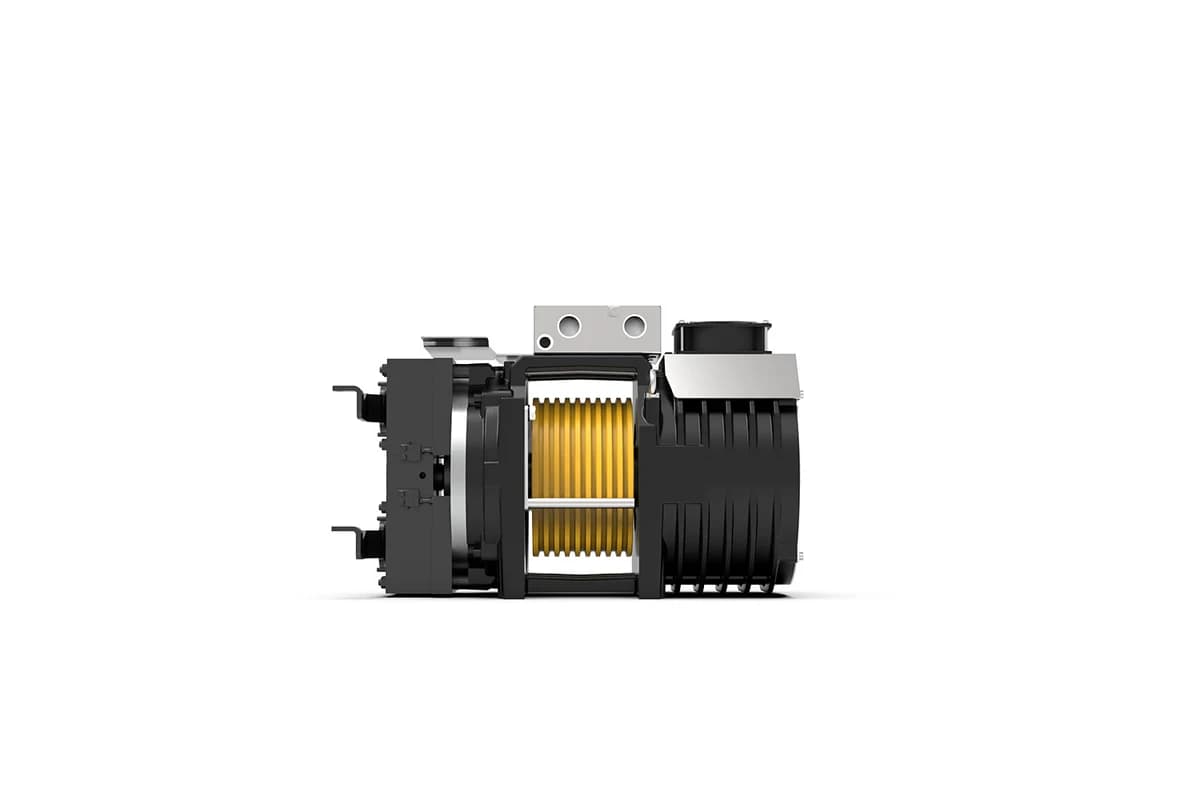

SICORSGS9
- Product code
- 1338
- Category
- Gearless motor
- Payload
- 1600 kg
- Speed
- 0.63–2.00 m/s
- Product family
- SGS — central traction sheave
- Motor type
- Gearless PMSM internal rotor
- Power
- 1.8–8.8 kW
- Rated torque
- 290 Nm (S3 40%)
- Max static load
- 29.4 kN – 3000 kg
- Machine weight
- 142 kg
- Traction sheave
- 120–240 mm
- Roping
- 2:1
- Suspension
- Wire rope
- Duty type
- S3 40%
- Machine room
- Compact MRL
- Compliance
- Lift Directive 2014/33/EU, EN 81-20, EN 81-50
Product overview
SGS9 central-sheave gearless — 1600 kg rated for compact high-duty MRL.
