Specifications
16 specifications
SICORSGS6C
- Product code
- 1023
- Category
- Gearless motor
- Payload
- 800 kg
- Speed
- 0.15–1.00 m/s
- Product family
- SGS — central traction sheave
- Motor type
- Gearless PMSM internal rotor
- Power
- 0.9–4.8 kW
- Rated torque
- 145 Nm (S3 40%)
- Max static load
- 19.6 kN – 2000 kg
- Machine weight
- 100 kg
- Traction sheave
- 120–210 mm
- Roping
- 2:1
- Suspension
- Wire rope
- Duty type
- S3 40%
- Machine room
- Compact MRL
- Compliance
- Lift Directive 2014/33/EU, EN 81-20, EN 81-50
Product overview

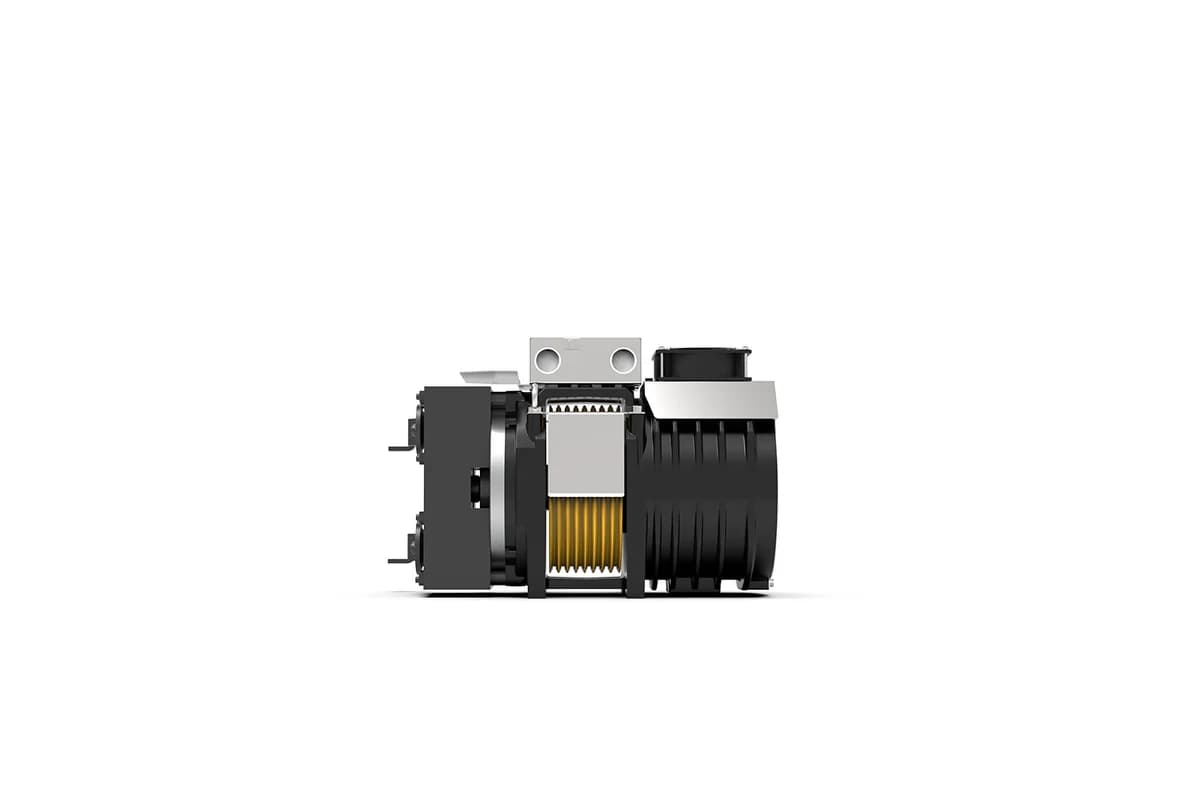

Central-sheave gearless machine for compact MRL — 800 kg rated in 2:1 roping.
