Specifications
17 specifications

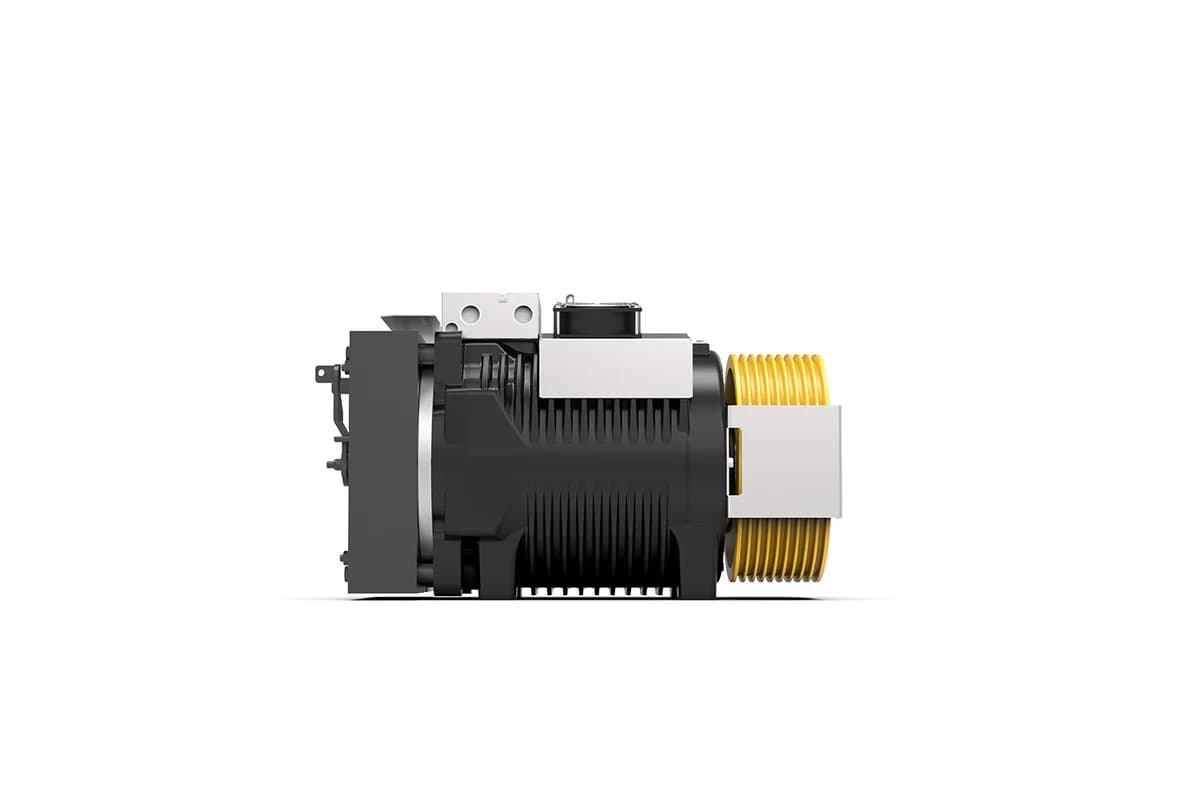

SICORSG48HF
- Product code
- 1085
- Category
- Gearless motor
- Payload
- 1600 kg
- Speed
- 0.63–2.50 m/s
- Product family
- SG — gearless sheave on drive side
- Motor type
- Gearless PMSM internal rotor
- Power
- 4.1–23.4 kW
- Rated torque
- 720 Nm (S3 40%)
- Max static load
- 34.3 kN – 3500 kg
- Machine weight
- 364 kg
- Traction sheave
- 120–520 mm
- Roping
- 2:1
- Suspension
- Wire rope
- Duty type
- S3 40%
- Machine room
- Machine-roomless or machine room
- Compliance
- Lift Directive 2014/33/EU, EN 81-20, EN 81-50
- Options
- HF — forced ventilation / high-performance cooling
Product overview
SG48HF forced-cooling variant — same duty as SG48 with HF cooling package.
