Specifications
17 specifications

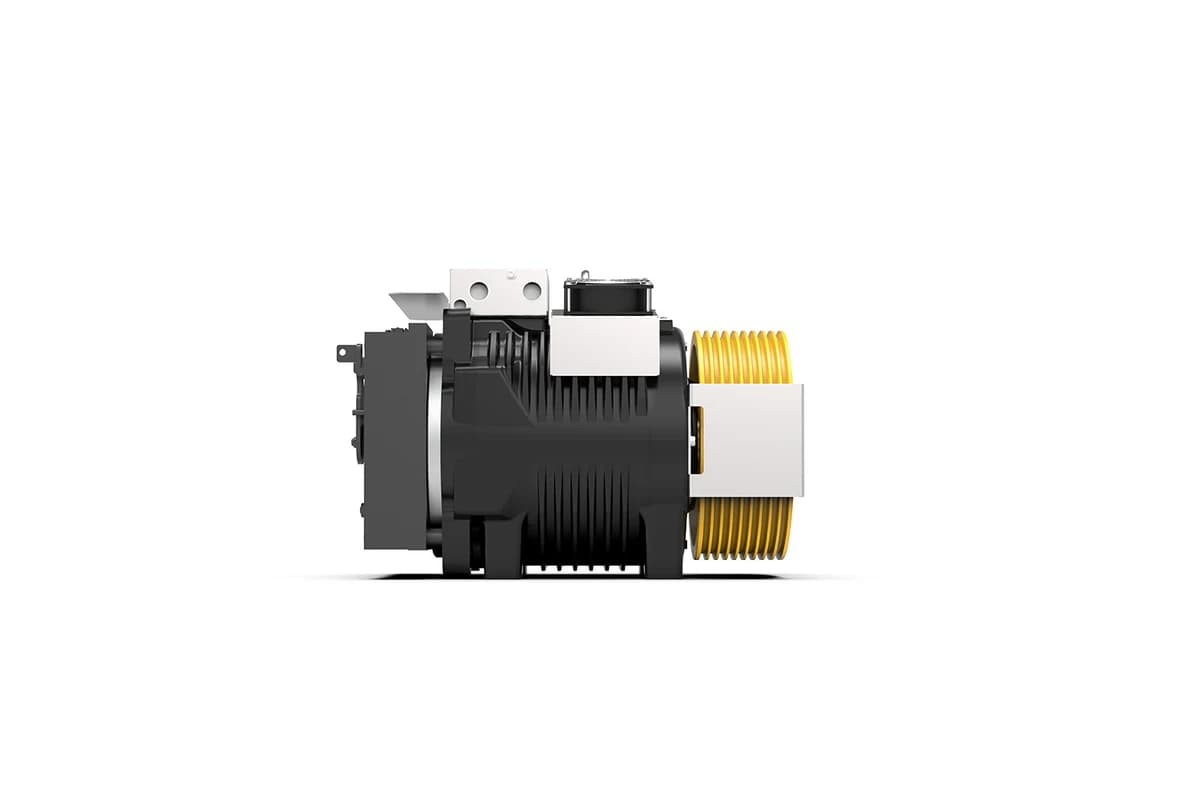

SICORSG40HF
- Product code
- 1165
- Category
- Gearless motor
- Payload
- 2000 kg
- Speed
- 0.63–2.50 m/s
- Product family
- SG — gearless sheave on drive side
- Motor type
- Gearless PMSM internal rotor
- Power
- 6.9–21.9 kW
- Rated torque
- 550 Nm (S3 40%)
- Max static load
- 34.3 kN – 3500 kg
- Machine weight
- 258 kg
- Traction sheave
- 120–520 mm
- Roping
- 2:1
- Suspension
- Wire rope
- Duty type
- S3 40%
- Machine room
- Machine-roomless or machine room
- Compliance
- Lift Directive 2014/33/EU, EN 81-20, EN 81-50
- Options
- HF — forced ventilation / high-performance cooling
Product overview
SG40HF high-performance forced-cooling gearless — 2000 kg rated.
